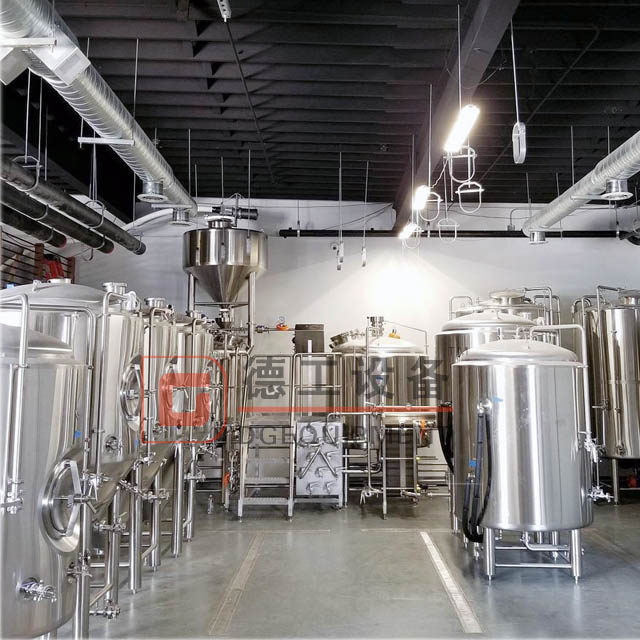

10BBL A Complete of Brewery Equipment Professional Commercial Brewing Equipment Ireland for Sale

Beer brewery process

Malt mill system(mill machine)

Mill machine used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable.

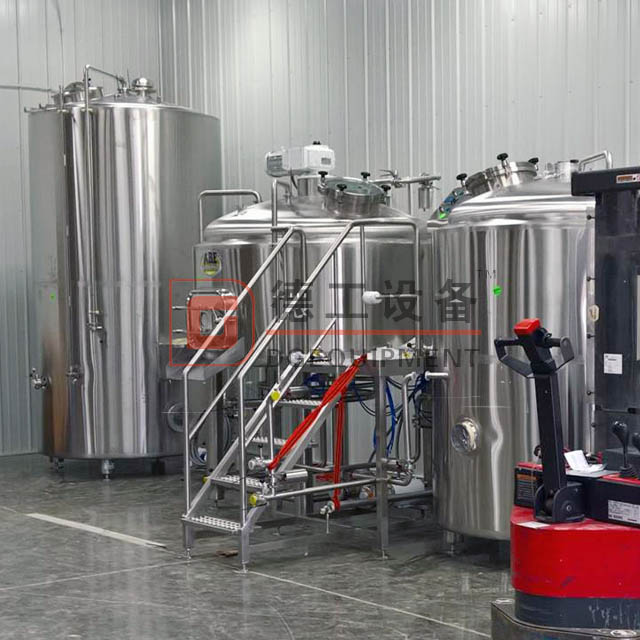

Mash system

2-vessel:mash/lauter tun, boiling/whirlpool tun

3-Vessel:mash/lauter tun, boiling tun, whirlpool tun

              mash tun,lauter tun, bouling/whirlpool tun

Optional: hot water tank or cold water tank

Material: SUS304/316 or red copper

Heating method: steam heated, electric heated or direct fire heated

With ABB VFD motor, raker, false bottom, sight glass,bimetallic thermometer(temperature probe PT100),spent grains hatch, sparage ring and so on.

mash system details

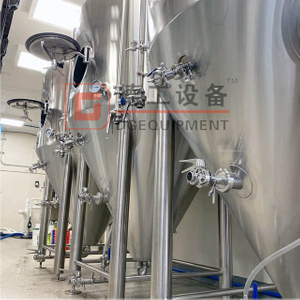

Fermentation system

It is composed of fermentation tanks, serving tank and accessories.

Fermentation tank more details

The number of fermentation tanks is determined by the output of beer.

• Material: stainless steel 304/316

• Fine polishing to 0.4~0.6um without dead corner

• Insulation:pilyurethane:80-100mm

• Cooling media: glycol water tank

• Dry hopping port on top

• Top manway,Sample valve

• Relief/vacuum valve on top, 3bar

• Test Pressure:0.3Mpa

• Rotating racking arm

• 4 support legs with height adjustable foot

• Complete valves, fittings and all parts

• Optional:carbonation stone, hops gun

mirror fermentation tank
