Stainless Steel Craft 10BBL Commercial Brewery Equipment Professional Chinese Manufacturer for Sale

Beer brewery equipment brief introduce

A larger brewery may use a five-vessel brewhouse, in which each of these components is a separate vessel. A microbrewery is more likely to use a two-vessel brewhouse that combines the mash and lauter tun into one vessel, the boiling tun and whirlpool into another vessel and hot water tank.The first of these vessels is used to mash the malt and other grains and extract the liquid wort. The second vessel in a two-vessel brewhouse is used to add hops and other ingredients to the wort and boil the resulting mixture. The wort is then allowed to settle, allowing solid particles to be separated from the liquid.

10BBLCommercial Brewery Equipment component

10BBL Mash-Lauter tun+Boiling-Whirlpool Tun

10BBL Hot water Tank

Glycol Jacketed Conical Fermentation Tank:

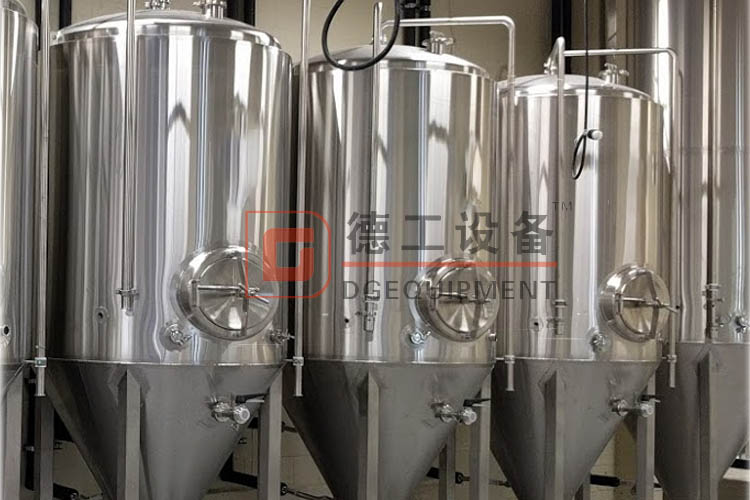

10BBL Fermentation Tank

Cooling Unit:

20BBL Glycol Water Tank

Chiller and Centrifugal Pump

Controlling Unit: Brewery Instrumental Control Cabinet

Cleaning Unit:

2*100L Tanks Portable CIP Cart

10BBL Commercial Brewery Equipment features

• Applicable for the nanobrewery, microbrewery, brewpub, taproom, restaurant

• Compact designed system

• Easy for control

• Low cost to operate

 Brewhouse unit

• Heating method: steam/electric/direct fire heating

• Interior Shell: SUS304/316 full welded; TH=3.0m

• Exterior Shell:SUS304/316 full welded; TH=2.0m

• 100mm polyurethane for insulation

• Acid washing and passivating the Interior finish to 0.4um

• Speed adjustable grain rake (scraper blade for optional)

• False Bottom/Filter

• Steam condenser with spray nozzles

• Completely stainless steel work platform

• Two stages or single stage plate heat exchanger

• Wort pump & hot water pump

• Stainless steel 304/316 operation platform




Fermentation vessel

• Material:stainless304/316

• Racking Arm and discharge port with butterfly valve and fittings;

• dimple plate cooling jacket.

• Insulation thickness: 100mm;

• Inner tank thickness: 3.0mm; outer thickness:2.0mm

• CIP arm and rotary spray ball

• Release and breath valves

• sample valve, mechanical pressure regulation valve

• Pressure gauge & Thermometer & Sample valve

• Dimple plate cooling jacket with glycol inlet and outlet

• Four legs with brace and adjustable bolt

• Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding.




Brewery equipment details show

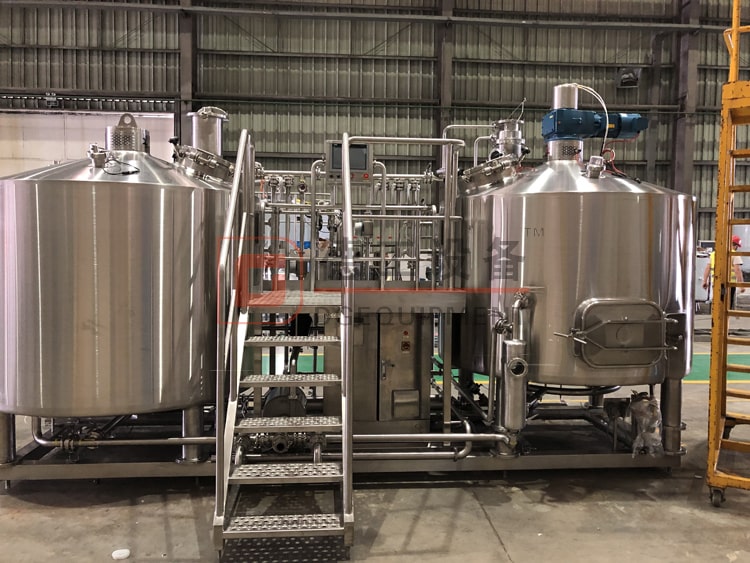

brewhouse details

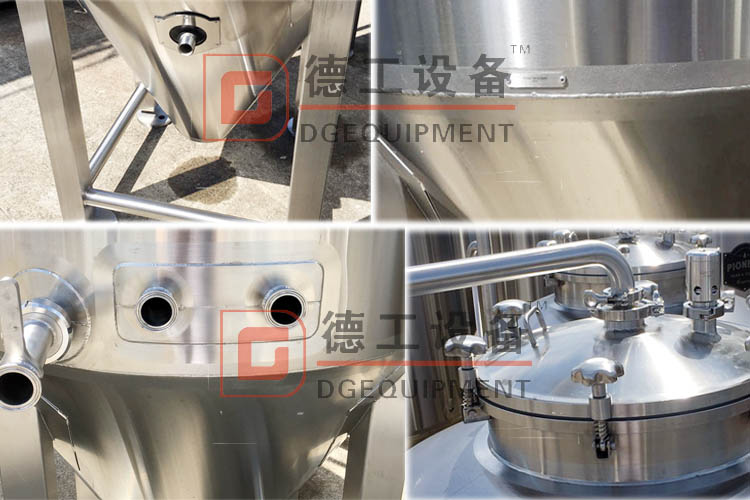

fermentation tank details
