1000L Commercial Used SUS304 Insulated 3 Vessels Beer Equipement

DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China.Brewhouse of beer brewing equipment assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.In the tank,there is CIP 360 degrees Omni bearing cleaning. In the mash tun the grist is mixed with brewing water from hot water tank to form tne mash. In the lauter tun the wort is separated from the solids.Spent grain is removed through side man way once all water is drained. Whirpooling is created by circulating the wort.the solids consist of protein and the hops roughage.

   Brewing equipment

  Mash/Lauter tank

1. Material:Inner(SUS304),thickness:3.0mm


2. External-Jacket(SUS304),thickness:3.0mm

3. Cylinder(sharp type,SUS304),thickness:3.0mm

4. Inner surface treatment :weld grindede to Ra 0.6μm

5. Insulation: Polyurethane-thickness 100mm

6. Temperature way: Double metal thermometer


7. Outsourcing surface: Weld polishing processing

8. Jacket Pressure:design pressure 0.3 MPa,working pressure ＜0.2MPa

9. CIP 360 degrees Omni bearing cleaning

  Mash tank & hot water tank

  Boiling/whirlpool tank

1. Material:Inner(SUS304),thickness:3.0mm


2. External-Jacket(SUS304),thickness:3.0mm

3. Cylinder(sharp type,SUS304),thickness:3.0mm

4. Inner surface treatment :weld grindede to Ra 0.6μm

5. Insulation: Polyurethane-thickness 100mm

6. Temperature way: Double metal thermometer


7. Outsourcing surface: Weld polishing processing

8. Jacket Pressure:design pressure 0.3 MPa,working pressure ＜0.2MPa

9. CIP 360 degrees Omni bearing cleaning

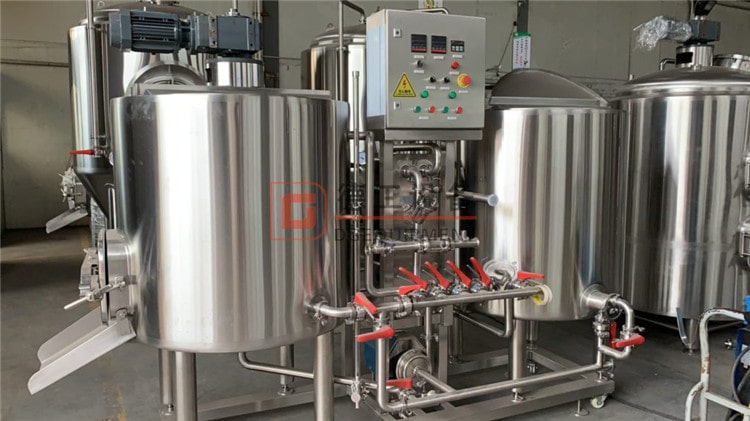

Mash tank & Boiling/Whirlpool tank & hot water tank

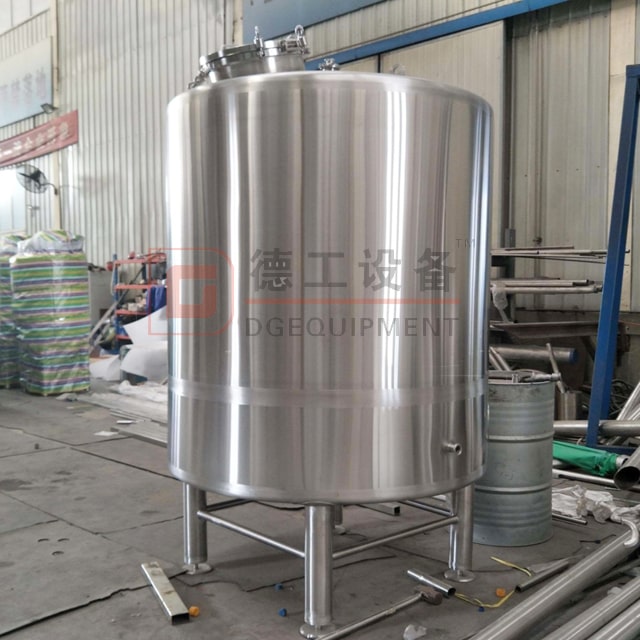

  Hot water tank

 1.Material:Inner(SUS304),thickness:3.0mm

 2.External-Jacket(SUS304),thickness:3.0mm

 3.Cylinder(sharp type,SUS304),thickness:3.0mm

 4.Inner surface treatment :weld grindede to Ra 0.6μm

 5.Insulation: Polyurethane-thickness 100mm

 6.Temperature way: Double metal thermometer

 7.Outsourcing surface: Weld polishing processing

 8.Jacket Pressure:design pressure 0.3 MPa,working pressure ＜0.2MPa

 9.CIP 360 degrees Omni bearing cleaning

Hot water tank

Brewing equipment

If you have any questions, you are welcome to come to consult, my pleasureHope every customer is satisfied with DEGT products.
