1000L Beer Brewery Equipment Steam Heating Brewkettle 3 Vessel Semi-automatic Brewhouse for America

1000L craft beer equipment is with a 3 vessel semi-automatic brewhouse, which consists of mash -kettle, lauter tun and whirlpool. This design is space save, operate friendly and capacity satisfied for a pub brewery. You could expand capacity by adding extra functional vessels, fermentation tanks and bright beer tanks.

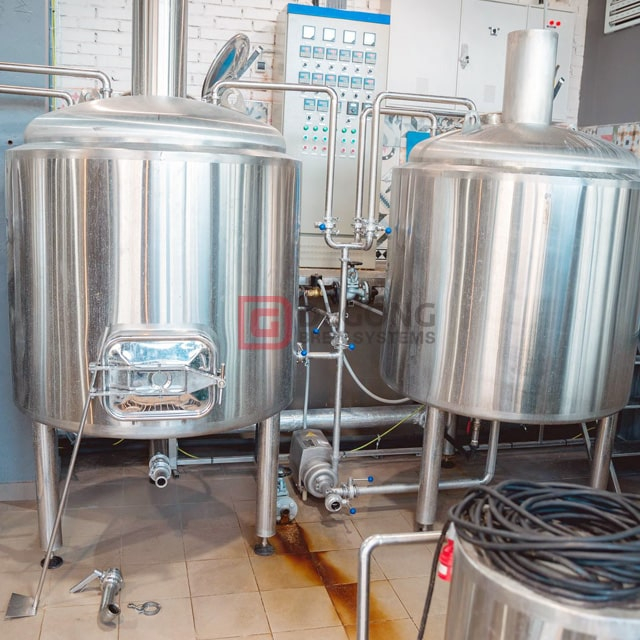

Brewhouse Equipment

Mash tank, lauter tun, brew kettle, whirlpool tun.

1.Brewhouse: two vessels, three vessels, four vessels brewhouse

2. Heating medium: steam heating

3. Insulation material: polyurethane. Insulation thickness: 100mm

4. Mash tank; hydrator, mixer, steam heating jacket

5. Lauter tun: rake, agitator, false bottom, hydrator

6. Brewkettle, steam heating jacket, inner steam heating device

7. Whirlpool tun: whirlpool entry

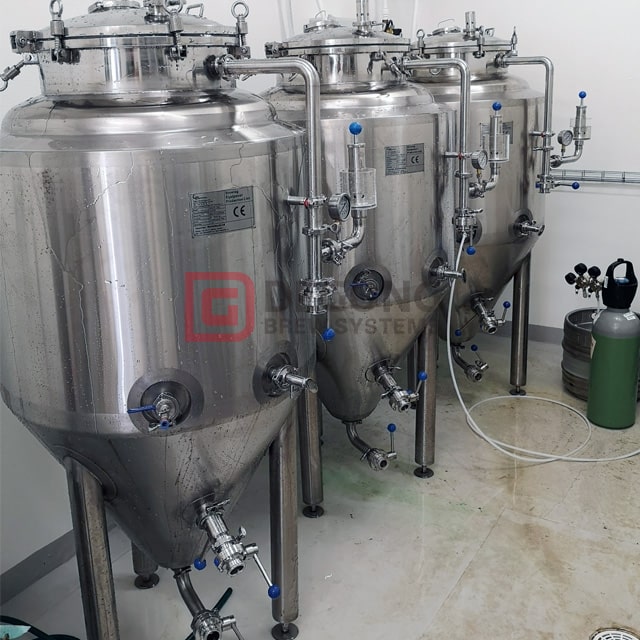

Fermentation tank

1. Stainless steel 304, side man way or top manway

2. PU insulation, insulation thickness: 80-100mm

3. Inside wall thickness: 3mm, outer shell thickness: 2mm

4. CIP Rotary Spray Ball

5. Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves

6. PT100 temperature sensor, with temperature controller

7. 2 sections dimple plate cooling jacket( 1 on wall and 1 on cone);

8. Complete with associated valves and fittings

If you have interest, please feel free to contact me.
