1000L brewery equipment stainless steel material brewing brewhouse system with steam heating

We plan and design complete breweries, all systems can be designed with the client's input for a defined process;
A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);
Thickness of material (mm):
heating method:
Availability:
Quantity:
  • DEGONG 1000L
  • DEGONG
  • 8438400000

We plan and design complete breweries, all systems can be designed with the client's input for a defined process;

A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);

Fully piped and wired, including valves and sensors;

Integrated pump system;


brewhouse19

Beer brewhouse system brewing equipment 1000liter per brew


CIP system: separated CIP for individual tanks to prevent cross product interference;

Master brew interface control system (touch screen control panel),

Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;

Automated lautering, automated water mixing

High quality insulation effect: Rock wool thickness: 80mm


Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm

World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.

Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm

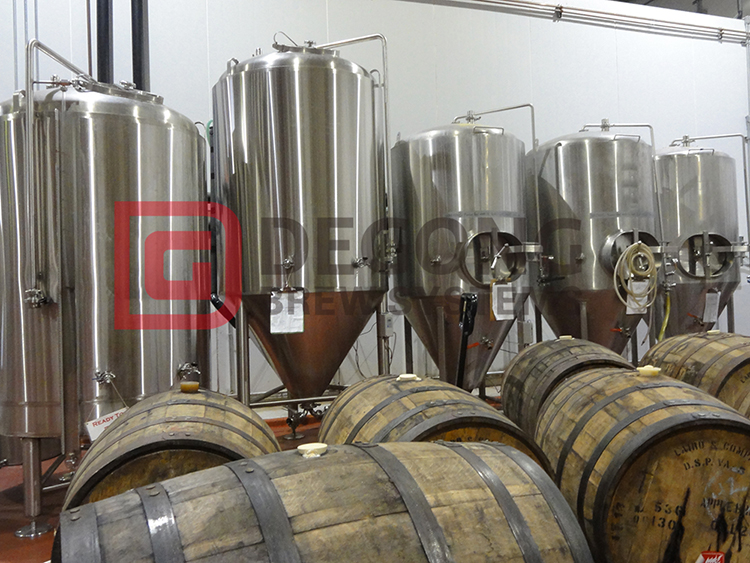

FV13

Beer fermentation tanks for fermenting beer wort


Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included

Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included

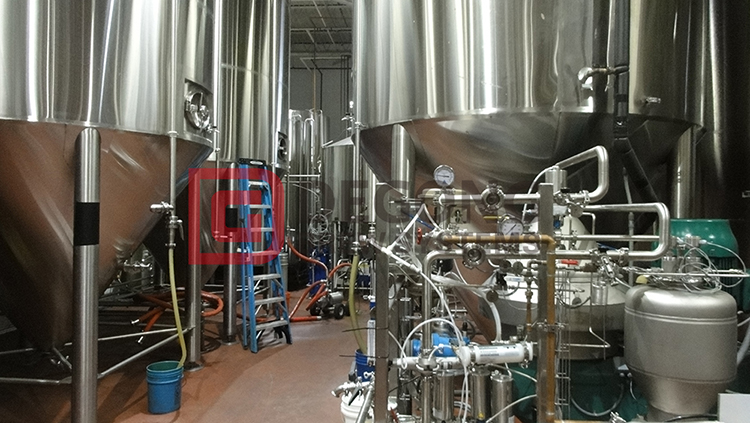

FV12

Fermentation tanks in clients brewery plant


Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included

Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request


Model DEGONG-1000L
Capacity 1000L/Batch
Material SUS304
Combination method Mash/Lauter tank and Kettle whirlpool connection tank
Application Restaurants, bars, hotels, brewery
Heating way Steam heating/Electric heating
Voltage AC380/220V, 50/60HZ
Floor area 20m2
Degree of automation Semi-automatic/Fully automatic
