English Views: 17 Author: Site Editor Publish Time: 2025-08-27 Origin: Site
Efficient brewing has always been crucial, but in today's world of rising costs, maximizing efficiency can mean the difference between profitability and profitability. Craft brewers invest significant time in selecting the best ingredients and optimizing their brewing processes to achieve the best possible flavor. This sometimes comes at the expense of time, cost, and efficiency.
Brewery efficiency refers to how much potential fermentation product is converted into wort at a measured gravity and target volume. It's sometimes also called boiler efficiency. Most brewers use brewing software (Beersmith, ProMash, Brewersfriend, etc.) to calculate efficiency at different stages of the brewing process. However, to understand what this number means, we must understand the formula behind it.
Brewery Efficiency = Actual Grain Extract / Potential Grain Extract
Actual Grain Extract = Wort Volume (L) Specific Gravity (sg) Plato / 100
Potential Grain Extract = Grain Weight (kg) * Grind Extract Percentage
The formula for calculating actual grain extract is to multiply the wort volume (in liters) by the wort specific gravity to determine the wort weight. This weight is then multiplied by the wort concentration (in Plato), which indicates how much of the wort weight comes from extracts (sugars, protein, etc.). Make sure all volume measurements are corrected for temperature differences, as volume increases with temperature.
The three main steps that influence brewing efficiency are grinding, mashing, and lautering. Furthermore, the quality of the raw materials used is crucial.
High-quality malt contributes to improved efficiency. Barley is selected so that at least 95% of the kernels are larger than 2.5 mm. This uniformly large size ensures better grinding and a more optimal starch-to-husk ratio. Extract content is a quality aspect in itself, but it has nothing to do with efficiency. What influences efficiency is the difference between ground malt and milled malt. This is a measure of how crisp the malt is when it is broken or ground. Crisp malt is easier to grind.
Even with high-quality malt, if efficiency is still low, it's best to review your grind. A good grind produces little flour but completely separates the inner flour from the outer husk. A common mistake is overgrinding, resulting in excess flour and a broken outer husk. This creates a very tight filter bed that can be difficult to filter and/or convey. If you experience low efficiency and notice a high amount of flour in your grind, try a coarser grind. Unopened kernels or kernels that are too large may indicate an overly coarse grind, low friability, or insufficient malt modification, which can also reduce efficiency. Therefore, a compromise needs to be found between a grind that is compact enough to provide adequate conversion efficiency and coarse enough for lautering.
It is known that temperatures between 63°C and 80°C fully convert the mash. The specific temperature during mash rest depends on the mash plan, rest time, fermentation goals, and the diasaccharifying capacity of the malt. Different temperatures do not affect efficiency, so these temperatures affect the flavor of the final beer rather than efficiency.
The enzymes responsible for starch conversion are sensitive not only to temperature but also to pH. Brewing literature indicates that for optimal conversion efficiency, the mash pH should be between 5.5 and 5.6 (measured at room temperature). Some studies have found that brewery efficiency decreases by 2% when the pH exceeds this range by at least 0.2.
The design of the mash tun and false bottom or screen significantly impacts the efficiency of the mash. Round, cylindrical mash tuns are generally considered the best choice because they allow the grain bed to be roughly as deep as its width. This is one reason cylindrical water coolers are so popular.

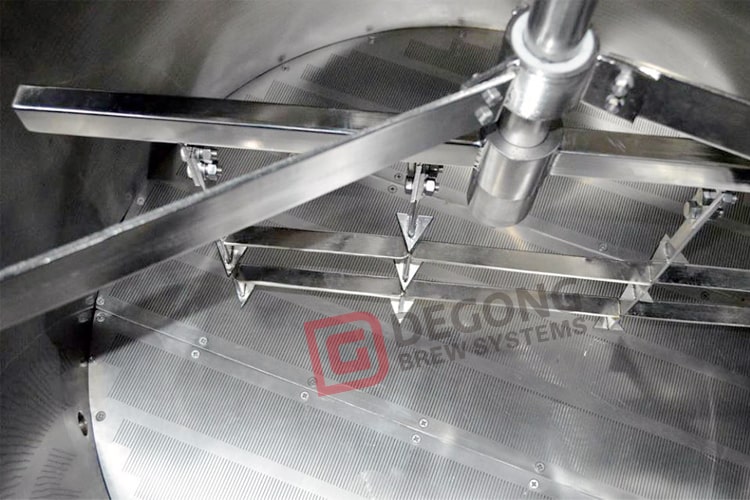

The false bottom should cover the entire bottom of the mash tun, but leave as little dead space as possible underneath. This ensures a more uniform flow of grain through the grain bed, improving efficiency.
For breweries seeking to optimize operations and increase efficiency, automation technology can be a game-changer. By automating key processes, breweries can improve accuracy, consistency, and efficiency.
One of the main benefits of automation is increased accuracy. Automation can control variables such as temperature, pressure, and flow rate to ensure consistent finished products. This improves product quality and customer satisfaction. Another benefit is increased efficiency. Automation helps streamline processes, reduce waste, and minimize downtime between batches. This can increase a brewery's output and revenue.
Brewing is a batch process, resulting in significant heating and cooling requirements. A well-designed, integrated heat exchanger network can recover and reuse waste heat, reducing energy consumption. Well-known examples include recovering heat from wort kettle steam for wort preheating and recovering hot water from wort coolers for subsequent mashing.
Buffering and utilizing energy storage tanks can significantly impact the capital requirements and utility size required to produce beer and reduce peak loads.
The goal of filtration is to extract the maximum extract possible from the grist. Filtration speed and efficiency are determined by the sieve plate. A larger lauter hood volume can increase filtration speed. Another way to maintain a loose grain bed is to reduce agitation during mashing and avoid grinding the grain simultaneously. Reduce the initial lauter tun rate and increase the lauter tun rate to prevent channeling.
