DGET-bag filter
DGET
8438400000

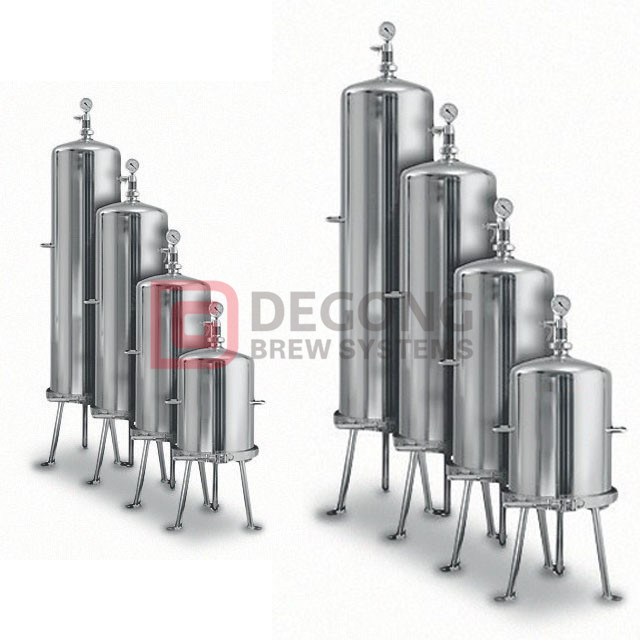

| Stainless steel Sanitary bag filter |
The choice for food & beverage and low critical filtration (standard filtration) applications
This is an economical stainless steel filter housing for lenticular depth filter modules.The enclosed system allows high capacity depth filtration with no drip loss (no edge leaking). Designed and manufactured for heavy duty use. System of choice for frequently changing filtration applications.
Applications
Beer
Wine
Juice
Tea
Distilled products
Non critical solutions
Raw materials
Stainless steel bag filters
Features
Easy handling
Simple and fast exchange of the lenticular modules
High chemical resistance
Small foot print
Available for 12'' and 16'' modules
Low investment cost with a relatively large filter area
Easy CIP cleaning possible
Easy adaptable to your process due to in-house production
Quick opening/closing with simple clamp ring
Available with DOE and DOR adapter

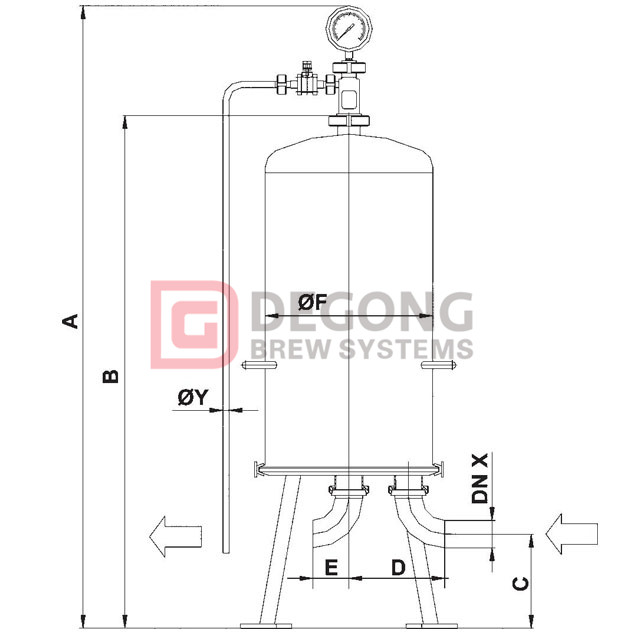

Dimensions (mm) | ||||||
12'' module | 16'' module | |||||
Size 1 | Size 2 | Size 3 | Size 2 | Size 3 | Size 4 | |
A | 995 | 1305 | 1555 | 1332 | 1582 | 1862 |
B | 775 | 1085 | 1335 | 1112 | 1362 | 1642 |
C | 183 | |||||
D | 185 | 415 | ||||
E | 70 | |||||
F | 324 | 450 | ||||
DNX | DN 50, DIN 11851 (dairy) | |||||
φ | DN 10, DIN 11851 (dairy) | |||||
Material
Stainless steel material (product contact):AISI 316L
Other stainless steel parts:AISI 304
Surface finish (inside):All welds ground smooth polished Ra < 0.8 µm
Surface finish (outside):Ground polished Ra < 1.2 µm
Gaskets:EPDM
Options
The typical setup requires gauges and valves, as well as a check valve.
The quality assurance
We assure the best quality control according to international standards ISO 9001 (quality management).
Piping system
By customer request
