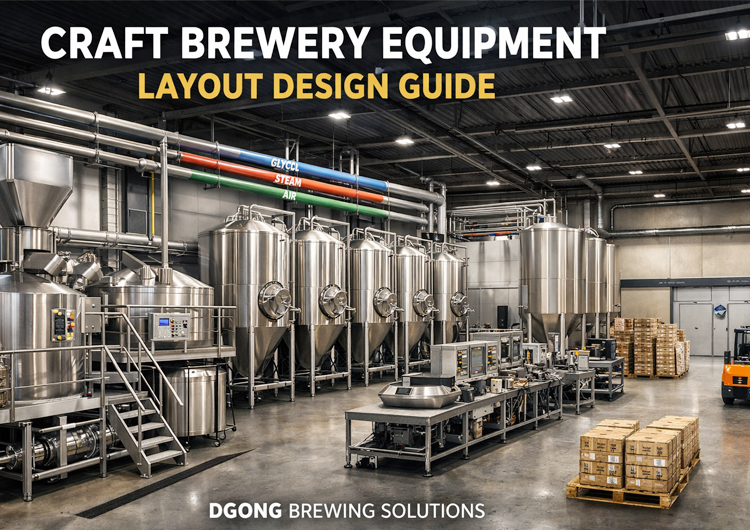

DEGONG Craft Brewery Equipment Layout Design Guide

Designing an efficient craft brewery layout is not simply about placing equipment inside a building. A well-planned layout ensures smooth production flow, reduces labor intensity, improves sanitation and safety, and supports future expansion. This guide from DGONG Brewing Solutions provides a practical framework for designing a functional, scalable, and production-oriented brewery layout.

1. Understanding Brewery Equipment Layout Design

Brewery layout design refers to the systematic planning and organization of all production, utility, and support equipment within the brewery facility. This includes:

• Brewhouse system (milling, mashing, lautering, boiling, whirlpooling, cooling)

• Fermentation and conditioning tanks

• CIP and sanitation systems

• Packaging and cold storage areas

• Utilities (steam, water, glycol, air, electrical systems)

• Logistics and operational support zones

A good layout ensures that materials and products follow a logical, one-way workflow — from raw materials to brewing, fermentation, packaging, storage, and final dispatch — minimizing cross-movement and contamination risk.

2. Core Objectives of Brewery Layout Planning

An optimized layout should achieve the following goals:

1. Smooth Process Flow – Reduce unnecessary movement and improve production efficiency

2. Space & Labor Optimization – Improve maneuverability and operator safety

3. Quality & Hygiene Control – Prevent contamination and temperature-conflict areas

4. Ease of Operation & Maintenance – Allow convenient access to valves, pumps, and pipelines

5. Scalability for Expansion – Reserve space and pipeline points for future growth

At DGONG, layout planning is treated as a strategic engineering step, not an afterthought.

3. Key Steps in Brewery Layout Design

Step 1 — Define Production Capacity and Brewing Objectives

Determine:

• Batch size and output targets (e.g., 500L, 1,000L, 10BBL, 20BBL)

• Brewing frequency per week

• Packaging method (keg, bottle, can)

• Expected market scale

Production strategy directly affects equipment configuration and spatial requirements.

Step 2 — Survey the Building Conditions

Before designing, measure and record:

• Floor area and ceiling height

• Structural columns and drainage positions

• Door widths for equipment transport

• Floor slope and waterproofing condition

• Ventilation and heat-dissipation capability

Many installation problems arise from not fully understanding on-site constraints in advance.

Step 3 — Map Out the Brewing Process Flow

Align the physical layout with the brewing sequence:

Raw material → Milling → Mash/Lauter → Boil → Whirlpool → Cooling → Fermentation → Conditioning → Packaging → Cold Storage → Dispatch

Each processing step should be arranged to minimize reverse movement and repeated handling.

Step 4 — Divide the Facility into Functional Zones

A practical craft brewery generally includes:

1. Brewhouse Area

2. Fermentation & Conditioning Area

3. Packaging Area

4. Cold Storage Area

5. Utilities & Technical Service Zone

6. Warehouse and Support Areas

Clear zoning improves hygiene control and operational discipline.

4. Practical Layout Recommendations

4.1 Brewhouse Layout

• Arrange equipment according to the brewing sequence

• Maintain safe operator-access space on all sides

• Whenever possible, use gravity-assisted transfers

• Avoid unnecessary long pipeline runs

4.2 Fermentation & Conditioning Area

• Tanks should be aligned in single or double rows

• Leave adequate aisle width for operation and CIP

• Arrange piping overhead or along the wall

• Reserve tank installation space for future expansion

4.3 CIP & Utility Systems

Utility systems should be centrally planned and logically routed:

• Glycol cooling network

• Steam and condensate piping

• Compressed air systems

• Electrical supply lines

• CIP distribution framework

Piping must be standardized, labeled, and expandable.

4.4 Packaging and Cold Storage

• Position packaging near finished-product storage

• Minimize temperature exposure during transfer

• Design forklift and pallet-movement paths

• Separate hot and cold operating zones

5. Common Layout Mistakes to Avoid

• No reserved space for expansion

• Insufficient access and maintenance corridors

• Disorganized pipeline layout

• Hot and cold areas placed too closely

• Poor drainage and sanitation design

• Ignoring safety and fire-protection requirements

DGONG engineers emphasize preventive planning rather than post-installation modification.

6. The Value of Professional Layout Engineering

Working with experienced brewery designers provides clear advantages:

• Accurate 2D and 3D layout drawings

• Optimized piping and utility routing

• Lower installation cost and time

• Improved operational safety and hygiene

• Long-term upgrade and expansion planning support

DGONG offers complete engineering assistance from concept to implementation.

7. Conclusion

Brewery layout design is a comprehensive engineering process that integrates:

• Production logic

• Material and personnel movement

• Maintenance accessibility

• Hygiene and safety control

• Scalability for future growth

A well-designed layout enables the brewery to operate efficiently, safely, and sustainably — ensuring that the facility truly serves the brewing process, rather than restricting it.

DGONG Brewing Solutions is committed to supporting breweries worldwide with professional equipment, engineering design, and technical expertise.
