DEGT-1000L
DEGT
8438400000
Application
DEGONG distilling equipment can make wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small-medium sized, centralized, automatic controlled, easy operating and beautiful outlook. Can be used small-medium sized workshops, hotels etc.
Working capacity:66gal
Total volume:119gal
Jacket pressure:15psi
Diameter of column:diameter 12"
Heating way:indirect steam heating/ directly steam heating
Control method:automation
Function:making low concentration spirits,making high concentration spirits,spiced liquor,cleaning system,cooling system
Inner material:C1100 95%,stainless steel 5%
Running time:3hours/batch
Raw material:ferment liquid,low concentration spirits
Suitable brewing style:whiskey,RUM,Brandy
Overall dimension:1000*3900*3400
Material: Stainless Steel 304, Red Copper T2
Type: 1. single layer ; 2. with heating jacket only; 3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.
Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Motor is CE/ ISO approved, with Explosion proof.
Material: Stainless Steel / Red Copper
Have different shape for opition.
We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates
The bubble tray intergrated within a tightly embedded inner shell, to avoid welding scar around the column.
Bubble caps and screw are made of red copper, the screw with a no dead corner design, can 100% meet sanitary stand.
The bubble cap have 6 size: DN26/ DN38/ DN45/ DN52/ DN65/ DN76
A chilling apparatus (condenser) at the top of the reflux column.
It's comprised of a bank of tubes with cold water running through them. This increase reflux, and the purity o f the distillate.
Material: Red Copper / Stainless Steel 304L
Structual tube type heat exchanger, with cooling water inlet and outlet
with a sight glass (optional) and thermometer in the top.
A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material: Red Copper / Stainless Steel 304
Structural tube type heat exchanger; with cooling water inlet and outlet.
With a thermometer.
for stainless steel condenser, the surface can finished as scaled.
Material: Stainless Steel 304/ Glass/ Red Copper
Can supply different shape of spirit safety according to customer's request.

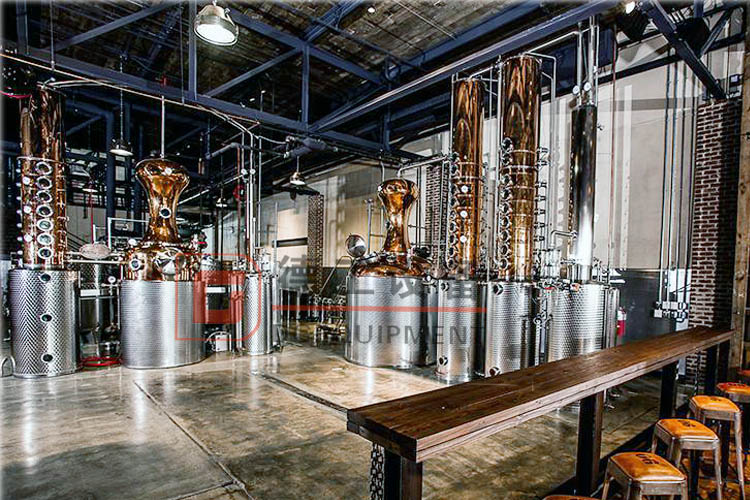

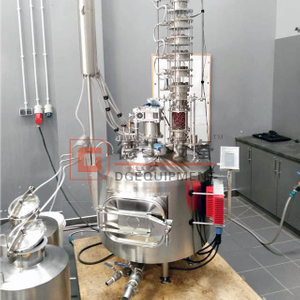

distilling equipment details
Distilled gin
If you have interest, please get in touch with me any time.
