Thickness of material (mm): | |
---|---|
Heating method: | |
Availability: | |
Quantity: | |
DEGONG 500L
DEGONG
8438400000
We plan and design complete medium-sized breweries. All systems can be designed with the client’s input for a defined process.
Design:
A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer - lauter, kettle - whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks)
Fully piped and wired, including valves and sensors
Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping
Integrated pump system
Automated lautering, automated water mixing
Sanitary design:
Polished internal tank surface and welds
CIP system: separated CIP for individual tanks to prevent cross product interference

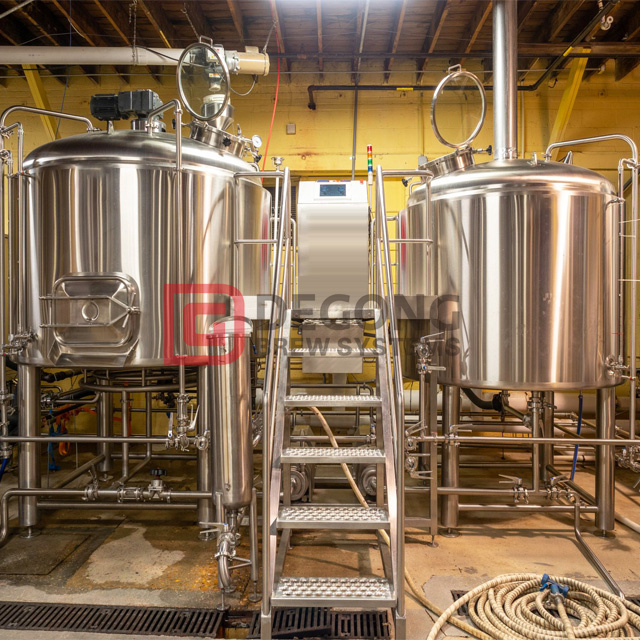

2vessel brewhouse system construction
User friendly:
All systems can be engineered with client input for defined process
Touch screen control panel
Master brew interface control system (touch screen control panel)
Possibility of manual control (pump on/off, temperature control, flow regulation)
Main components | |||
2vessel | 4vessel | 5vessel | |
1 | Mash mixer (MM) / Lauter tun (LT) | Mash mixer (MM) | Lauter tun (LT1) |
2 | Kettle (K) / Whirlpool (W) | Lauter tun (LT) | Lauter tun (LT2) |
3 | Hot water tank (HWT) | Kettle (K) | Kettle (K1) |
4 | Cold water tank (CWT) | Whirlpool (W) | Kettle (K2) |
5 | Hot water tank (HWT) | Whirlpool (W) | |
6 | Cold water tank (CWT) | Hot water tank (HWT) | |
7 | Cold water tank (CWT) | ||
A | Heat exchanger | Heat exchanger | Heat exchanger |
B | Pumps | Integrated pumps | Pumps |
C | Control and operating panel | Control and operating touch screen panel | Touch screen control panel |
D | Control cabinet | Control cabinet | Control cabinet |
E | Grist case | Grist case (option) | Grist case |
F | Platform with stairs and guardrails | Platform with stairs and guardrails | Platform with stairs and guardrails |
Cylindroconical fermentation tanks type
Design:
Pressure tanks with a cone-shaped bottom and dished tank lid
Working pressure in tank: 0/+1 bar, option 0/+2,5 bar
Made of stainless steel
With laser welded cooling jacket (pillow plate)
Equipped with a CIP (clean in place) tube and a cleaning head
The materials used and the surface finishing depend on the intended application and the customer's specifications
Insulated tanks make work more efficient and contribute to a more economical use of energy
The tanks are available in two designs: tank without insulation, tank with insulation
