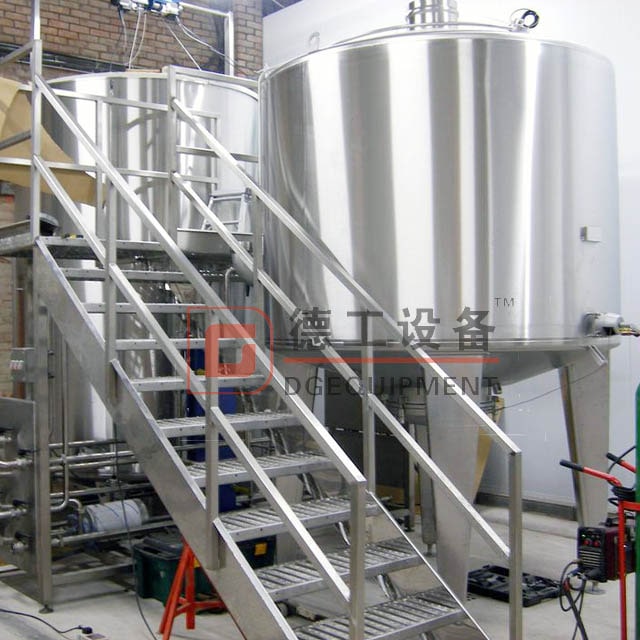

This 500l beer brewing system was designed with 3 vessels brewhouse, they are Mash tun/Lauter tun, Kettle/Whirlpool tun and hot liquor tank. The brewery matched with 5 sets 500l beer fermenters and 1 set brite tank, and it can service and meet a small island people beer demand. It is suitable for the restaurant, brewpub. Today, let's see the 500L brewhouse details.

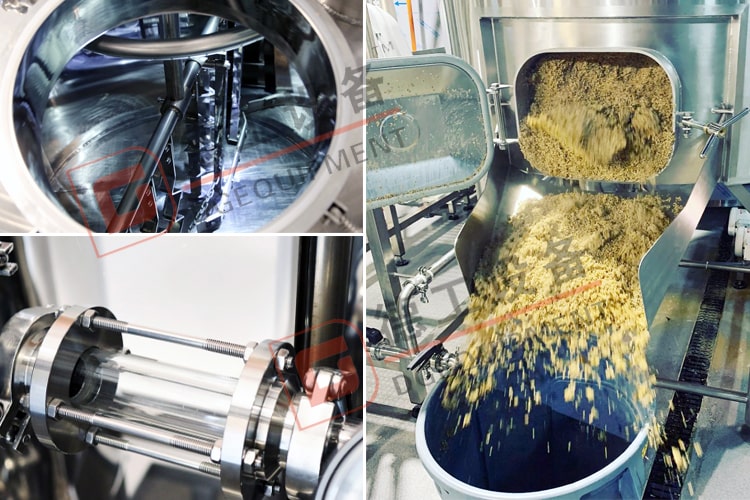

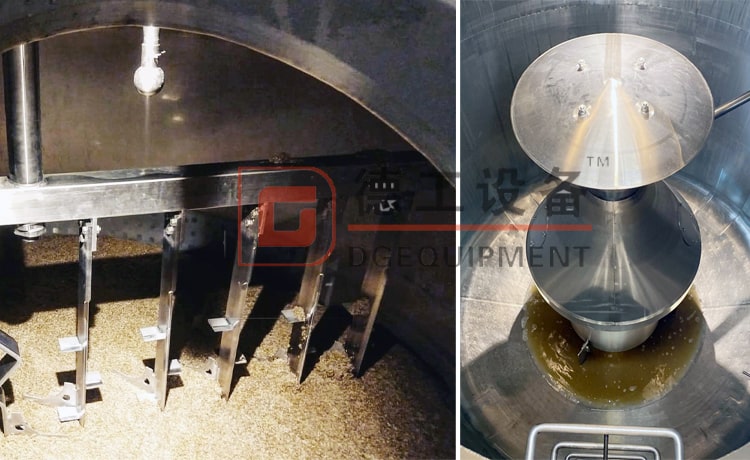

Mash/lauter tun
Washing way:CIP washing device
Insulation material:polyurethane
Insulation thickness:80mm
Lauter way:Sucktion filtering by variable frequency filter pump/Balance tank gravity filtration
Glass balancing tank
Filter sieve plate:milled,separation distance:0.7mm
Tank top:us dish seal,whole glass manhole φ400mm,Explosion-proof sight light(charged)
Malt and water mixer
Inner(sus304) 3.0mm outer(sus304) 2.0mm
Inner plate acid pickled,out plate surface:brushed surface plate,welding seaming polished.
EXhaust way:inner door exhaust
Tank body procesing technical:Argon arc welding
Control mode: PLC automatic control (combined with some manual control)
Boil/whirlpool tun
Heating way:steam heating according to dimple plate and jacket
Steam jacket thickness:2mm,dimple plate thickness:1.5mm
Steam jacket pressure:0.3Mpa,subdivision control
Washing way:CIP washing device
Temperature measurement way:temperature probe PT100,Temperature transmission, temperature control screen display
Insulation material: polyurethane
Insulation thickness: 80mm
Temperature control; Pressure control; Security components
Tank processing technology: all argon welding
Control mode: PLC automatic control (combined with some manual control)
Inner(sus304) 3.0mm outer(sus304) 2.0mm jacket 1.5mm
Inner plate acid pickled,out plate surface:brushed surface plate,welding seaming polished.
Exhaust mode: indoor exhaust
3D mash/lauter tun+boil/whirlpool tun+hot water tank
If you want to know more information abt beer brewery equipment, please feel free to contact me.
