DGET-600L
DGET
8438400000
We manufacture and supply brewhouse that vary in size from 100 to 5,000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DEGONG brewery systems are turn-key and consist of malt mill, heating, controls and installation and training.
| Brewhouse system in the brewery |

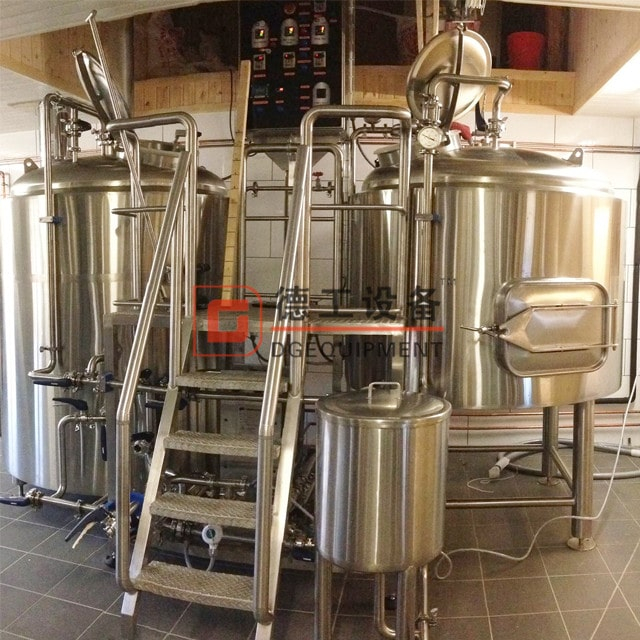

600L nano brewery equipment
| Structure | mash/lauter+brew kettle/whirlpool |
| capacity & dimensions | 600L working capacity（1160mm*1750mm） |
| Material | SUS 304/316 |
| Heating method | Steam/electric/direct fire |
| Electric power | 220V/230V/240V/380V;3-Phase;50hz |
The system can be heated by steam or electricity;and controlled by manual,semi-automatic or full automatic;and equipped with rake system or not.The mainstream of two-vessel brewhouse is steam heated and manual controlled system,and equipped with rake system.
Standard configuration for 2-vessel brewhouse system includes 2 brewhouse vessels:mash/lauter tun and kettle/whirlpool combined vessel,work platform,and stainless steel sanitary piping and control system.
M/L tun typical features:
Top manway,CIP spray ball,top sparging system,port for grist hydrator,vapor vent port,gear drive and rake system;
False bottom removal slot,thermowell port,wort recycle ,rectangular side manway with manway cover for spent grain-out;
Wort out collector,milling false bottom,false bottom under-flush assembly with spray nozzles,spent grain-out port.
B/W tun typical features:
Top manway,CIP spray ball,top sparging system,vapor vent port on the top;
Tangential whirling port,side steam jackets(or flange coupler for heat element for electrical kettle),thermowell port;
wort out ports on hollow dish bottom,steam jackets;
| Fermenting system in the brewery |

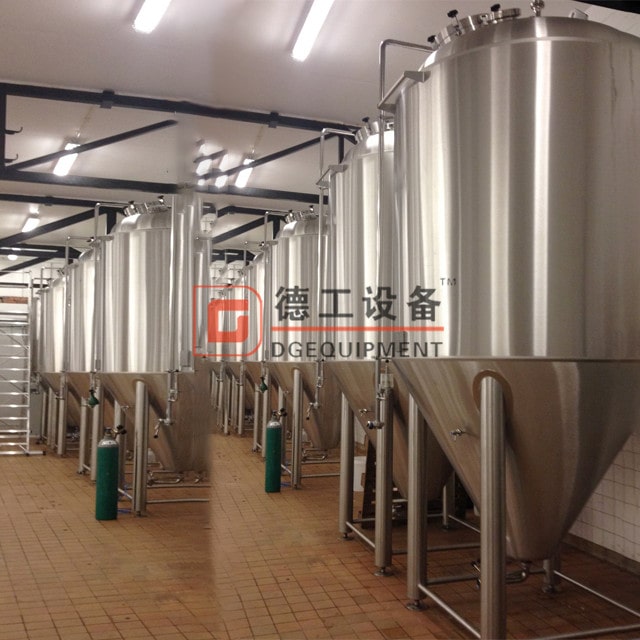

600L nano brewery fermenters with top manhole
CCT have a cooling jacket over the entire height of the cylindrical part. CCTs from 600 liters also have a separate cone cooling jacket. CCT are warmed by polyurethane foam 70-100 mm thickness. The external covering of CCT is made of sanitary stainless steel.
Tank and System Controls:
We can offer complete tank and system controls for any critical parameter of your process including:
Glycol chilling and cooling controls – solenoid, check valve, or pressure sensor actuated
Steam or other heating controls – globe, gate, pressure sensors, or solenoid actuated
Water flow controls, backflow preventers – filtration systems and controls
Programmable digital controllers for valves, solenoids – temperature, pressure and flow controls
Other control features and options available—semi automated or automated
Welcome to visit our website and contact me to get more information of nano brewery system, Cheers!!!
