DGET-D500L
Degong
8438400000
Overview
DEGONG offers turnkey batch distilling systems from 50L (13Gallon) to 5000L (1320 Gallon) in size. For the 500L equipment, It will be suitable to industrial distilling. We offer a full solution including controls and control components suited for the Class 1 Division 1 & 2 surroundings.

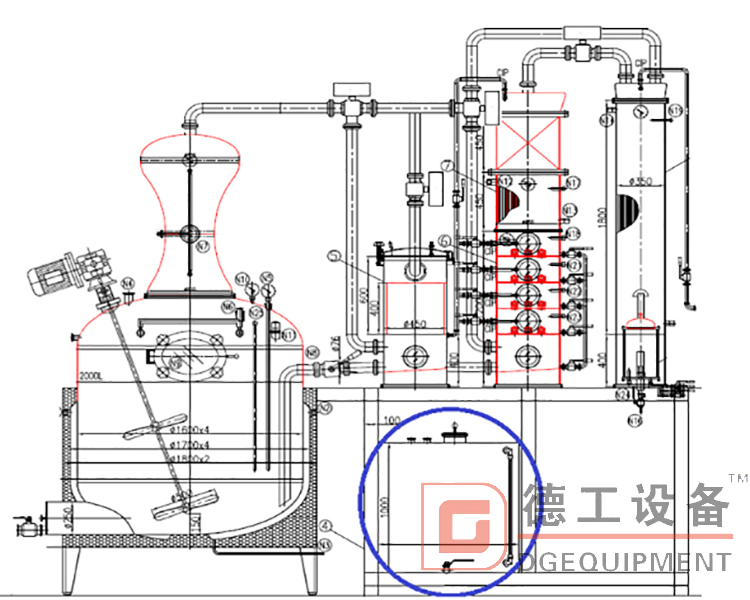

Main components
Distilling still;
Bubble hat;
Rectification column;
Fine distillation column;
Dephlegmator;
Condenser;
CIP system;
Piping
Distillate storage tanks
For distillate storage tanks we offer several sizes and configurations. Square totes are popular since they are an efficient use of space.
Storage tanks can also be incorporated into the still base below the column or condenser.
Heating system
Electric Systems: The electrically heated stills utilize a Bain Marie configuration. Electric heating elements are placed in an oil bath that is surrounding the still's pot. The oil is heated by the elements, which in turn heats the wash. This results in a very even heating to avoid any scorching of grains, or other solids that are used in the pot. It also places the elements inside the oil bath eliminating the safety concerns of them being inside the wash where ethanol vapors are present.
Steam Systems: We offer natural gas, propane, fuel oil, and electric fired steam boilers. The boilers would be located outside of the class 1 division 2 area and the steam would be piped to the still’s jacket. We provide a variable position steam valve that is controlled by the control system.
FAQ
Q1.Which is better and more productive – a Reflux Still or a Pot Still?
A:Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.
A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.
A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.
Q2.Do I need Permits?
A:Yes there are many permits required to start a new distillery depending on where you are located. Besides the federal permitting with the Alcohol and Tobacco Tax and Trade Bureau (TTB), most states and local jurisdictions require permitting of some sort. Please consult with an industry consultant or your legal counsel.
Q3:Do you have technical support after we purchased equipment?
A:We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.
Q4:How long time for installation?
A:It’s according to your equipment order, it about 10days to 30 days.
Q5:What’s your warranty policy?
A:We warranty all our equipment for up to 12 months. Your brewhouse and tanks are inspected and tested before they leave factory, but we also cover any and all issues you may have in the field.
Packing&delivery
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Transport:
by sea
Delivery:
- We put your order into our tight production schedule to ensure the punctual delivery time.
- Production or inspection report before your order packed.
- Shipping notice/ insurance to you as soon as your order is shipped.
Contact us
Every distiller is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
