1000L Microbrewery Equipment Beer Brewing System with CE UL Certification

Mashing or steeping, which is the first step of brewing process, occurs in this vessel.By soaking the milled grains in heated water, sugar extraction (along with color and flavor extraction) as the main purpose of this activity is processed when enzymes (from the malt) break down the starch into maltose to produce wort. The key mechanical device of this process is agitator. We build mash tun with both mashing styles of infusion and decoction.
Material:
Insulation:
Control system:
Electric component:
Heating method:
Availability:
Quantity:
  • DGET-1000L

  • DGET

  • 8438400000



Brewing-process

Beer brewing progress



Mashing system


The whole beer mashing process contains mashing,lautering,boiling,whirlpool

5


1.Mashing

Mashing or steeping, which is the first step of brewing process, occurs in this vessel.By soaking the milled grains in heated water, sugar extraction (along with color and flavor extraction) as the main purpose of this activity is processed when enzymes (from the malt) break down the starch into maltose to produce wort. The key mechanical device of this process is agitator. We build mash tun with both mashing styles of infusion and decoction.

Major of listed features provided below:

Water inlet

Hopper and grist hydrator

Steam jackets

Mirror image polishing available by purchaser’s request

US made top mounted VFD controlled mixing agitator

Multiple wort drains

Insulated and jacketed at the base and side of vessel

Interior welds and polished

Sanitary SS CIP 360-degree rotary spray ball

Top many with tempered sight glass

RTD port with tubing (thermowell)

4 heavy duty legs with adjustable leveling footpaths

Interior LED lights

Customizations are available on followings:
– Dimensions of vessels and size and location of ports
– Designing and manufacturing for other applications (wineries, distilleries)
– Brewhouse piping
– Orientation of brewhouse vessels



2.Lauter

The most important provision of this vessel’s functionality is rotating rake (for cutting the grain bed for faster flow). During the undiluted stage, with support of false bottom, malty liquid is separated from spent grains. Sparge ring (with hot water) will rinse off the remaining sugars in grains to increase the fermentability level of sugar in the wort.

Can build lauter tun as a dedicated vessel or combined with any other vessels based on customer’s needs.

Major of listed features provided below:

Steam Jackets

Detachable sparge ring

Side man way for spent grain removal process

Vorlouf

Mirror image polishing available by purchaser’s request

Crossbar support system for false bottom

Heavy duty removal false bottom

Grain plow

Us made top mounted VFD controlled gearbox for rakes-with adjustability of up/down position on horizontal bar

Multiple wort drains

Insulated and jacketed at the base and side of the vessel

Interior welds and polished

Sanitary SS CIP 360-degree rotary spray ball

Top manway with tempered sight glass

Side wort drain

RTD port with tubing (thermowell)

4 heavy duty legs with adjustable leveling footpaths

Interior LED lights

Customizations are available on followings:
– Dimensions of vessels and size and location of ports
– Designing and manufacturing for other applications (wineries, distilleries)
– Brewhouse piping
– Orientation of brewhouse vessels



3.Boiling

Process of wort boiling , and flavor addition are managed in this vessel. This is the process where the most of chemical and technical reactions (wort sterilization, bitterness/aroma flavor, enzymatic process suspension, proteins concentration) that in brewing session occur. Best Buy Brewing Equipment designs and manufactures boil kettle with different method for heating elements: direct fired (with and without calandria), steam (with steam jackets), and electric system (with immersion heaters).

Can build boil kettle as a dedicated vessel or combined with any other vessels based on customer’s needs.

Major of listed features provided below:

Insulated and jacketed at the base and side of vessel

Immersion heater ports (on electric system)

Vent

Firebox and forced air burner port (on direct fired system)

Steam jackets (on steam system)

Mirror image polishing available by purchaser’s request

Interior welds and polished

Sanitary SS CIP 360-degree rotary spray ball

Top manway with tempered sight glass

Thermowell

4 stainless heavy-duty stainless-steel legs with leveling footpads

Interior LED lights

RTD port with tubing (thermowell)

Customizations are available on followings:
– Dimensions of vessels and size and location of ports
– Designing and manufacturing for other applications (wineries, distilleries)
– Brewhouse piping
– Orientation of brewhouse vessels



4.Whirlpool

During the whirlpool session, the flavored wort (which is transferred from boil kettle) are separated from thicker partials (trub) which will be flashed out through dump port while the wort will be out through wort port. This separationcourse will allow the wort to be clearer and hoppier.
Can build whirlpool as a dedicated vessel or combined with any other vessels based on customer’s needs.

Major of listed features provided below:

Insulated and jacketed at the base and side of vessel

Interior welds and polished

Sanitary SS CIP 360-degree rotary spray ball

Top manway with tempered sight glass

Mirror image polishing available by purchaser’s request

Tangential whirlpool port

Wort outlet

Trub outlet

Trub dam

Thermowell

4 stainless heavy-duty stainless-steel legs with leveling footpads

Interior LED lights

RTD port with tubing (thermowell)

Customizations are available on followings:
– Dimensions of vessels and size and location of ports
– Designing and manufacturing for other applications (wineries, distilleries)
– Brewhouse piping
– Orientation of brewhouse vessels

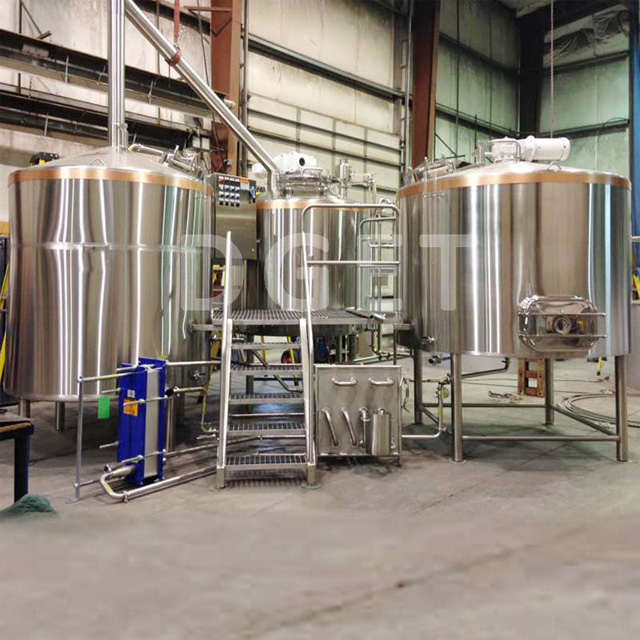

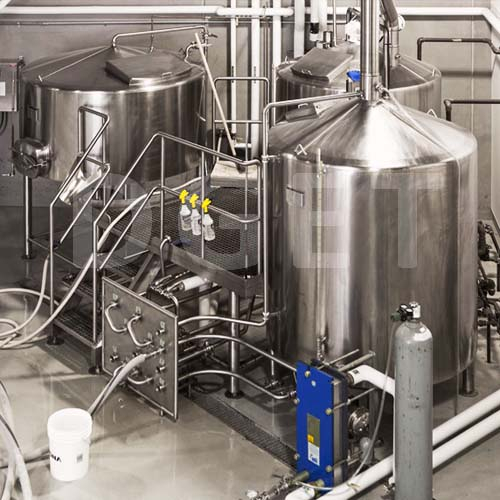

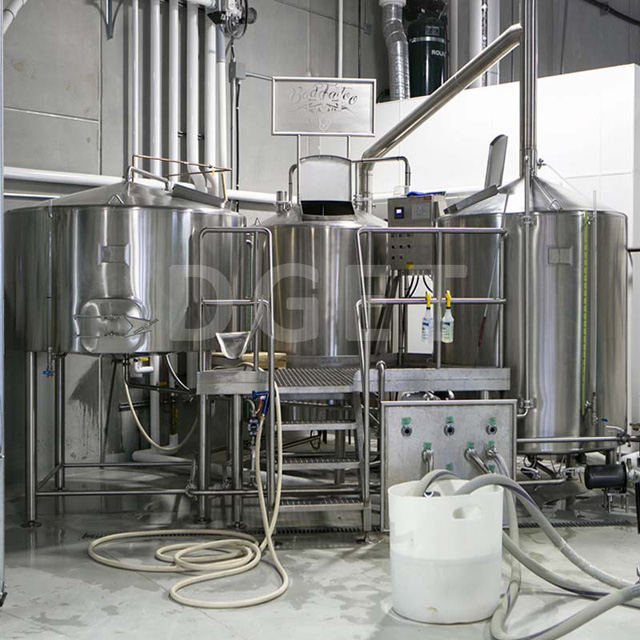

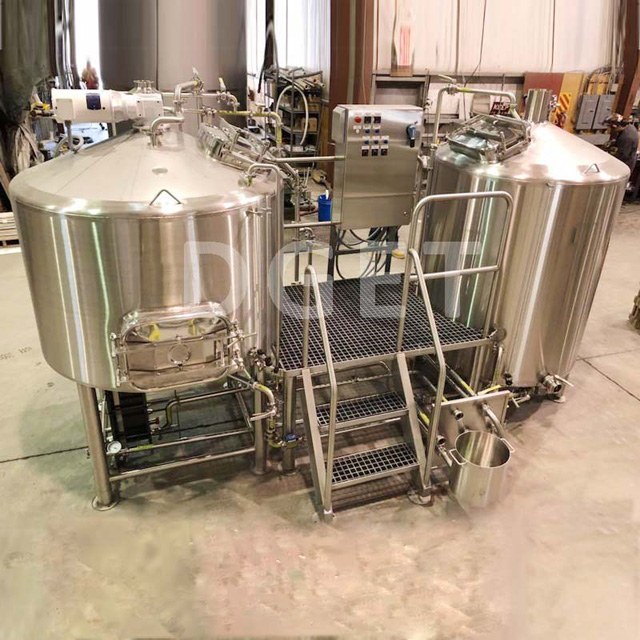

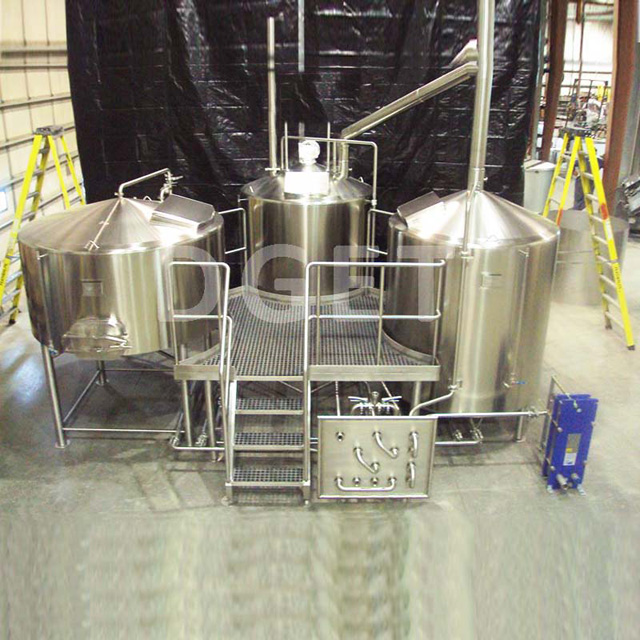

More Pictures



2


1933481_967749933303348_3265482098677117752_o


Brew-Kettle-Hero-Image

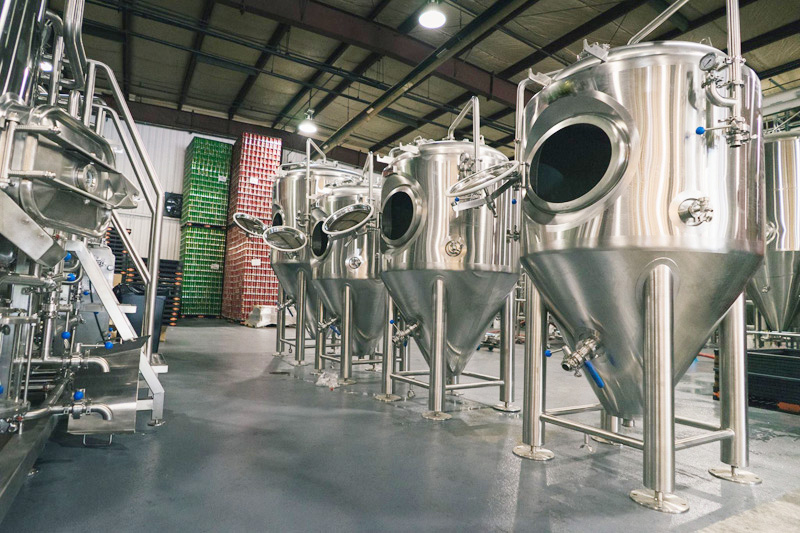

Fermentation tank


31


A bottom conical cellar tank (not conical cellar tank can also apply with different application) that processes the adding yeastand sugar-to-alcohol/CO2 conversion. We design the cone of fermenter with a correct angle to ease the yeast flushing process while considering the precise diameter leading to height of the cone. Our fermenter’s designs will correspond to both beer styles: Lagers with low fermentation temperatures, longer aging, yeast strain, and crispy flavors while ales with higher fermentation temperatures, shorter aging, and fruity flavors.

Major of listed features provided below:

Interior Shell with 2B polishing

Exterior Shel with #4 polishing

Mirror image polishing available by purchaser’s request

Glycol jackets with inlets and outlets on both cone and cylinder

Insulation on both cone and cylinder

CIP and blow-off arm (combined or separate by purchaser’s choice)

Tri-Clamp lid caps with gaskets for all ports and fittings

Dry hopping port with tri-clamp blocker

Pressure Relieve Valve

Pressure Gauge

Rotatable Racking Arm

Sampling Valve

Analog Thermometer

Dump port

3 butterfly valves

Side manway with shadow less door

4 stainless heavy-duty stainless-steel legs with leveling footpads

Full assembly of carbonation stone

RTD port with tubing (thermowell)

Customizations are available on followings:
– Dimensions of vessels and size and location of ports
– Designing and manufacturing for other applications (wineries, distilleries, meaderies, and cideries)
– Designing and manufacturing Unitanks


More pictures

未标题-1

QQ图片20191031150919


                      Our equipment shows in customer's brewery

20190703163950605060

20190703164013131313

20190703164077337733

20190703164197319731


FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we dont know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.
