Industrial 3000L Beer Brewing System Steam Heated 3-vessel Brewhouse Conical Fermentation Tank for Sale

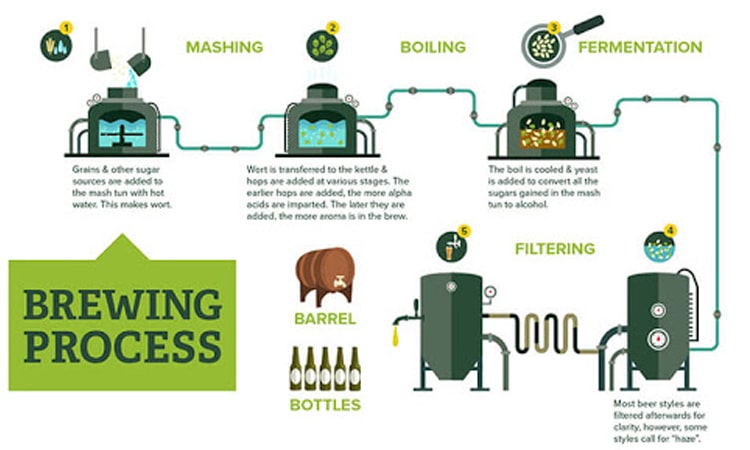

Beer mashing process

Mashing is the process of combining a mix of milled grain and water and heating this mixture in a vessel called a "mash tun". Second process, you need transfer the mixture of grain and wort into Lauter tun. You can get clear wort from this vessel. Thirdly, let’s transfer the clear wort into a vessel named Kettle, in which will happen many key process including: wort boiling(usually 60 minutes), hops adding. At the end of the boil, the wort will be into whirlpool tun, forcing the denser solids (coagulated proteins, vegetable matter from hops) into a cone in the center of the Kettle/Whirlpool tank.

beer mashing system

3-Vessels 3000L Brewhouse Main Configuration:

3000L Mash Tun with Steam Heating:

Be made of stainless steel 304; Brushed outer shell;

Steam jacket

Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm

Top mounted manway with full glass; Light fixture with LED;

CIP rotary spray device; mixer with motor;

Bottom wort collect;

Bimetal thermometer and temperature probe

Outer and Inner plate protection , and ribbon polished on all welds

All valves are stainless steel, which attaches with Tri-clamps;

With all matched valves and accessories.

3000L Lauter Tun

Be made of stainless steel 304. Brushed outer shell.

Thickness of insulating layer: 80mm, Thickness of inner body stainless steel: 3mm, outer shell is 2mm

Rake plow/Grain out door, Milled sieve plate; Grain washing  round pipe; CIP rotary spray device

Top mounted manway with full glass, manway handles material is plastic; Top decorative funnel; light fixture

with LED; thermo well;

Bimetal thermometer and temperature probe;

Outer and Inner plate protection , and ribbon polished on all welds

All valves are stainless steel, which attaches with Tri-clamps;

With all matched valves and accessories.

3000L Kettle/Whirlpool Tank

Be made of stainless steel 304; Brushed outer shell;

Steam jacket

Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm

Top mounted manway with full glass; Light fixture with LED;

With indoor or outdoor venting devices

CIP rotary spray device; safety combination

PT-100 thermometer and temperature probe

Tangential whirlpool line at the side

Outer and Inner plate protection , and ribbon polished on all welds

All valves are stainless steel, which attaches with tri-clamps;

With all matched valves and accessories.

brewhouse system details

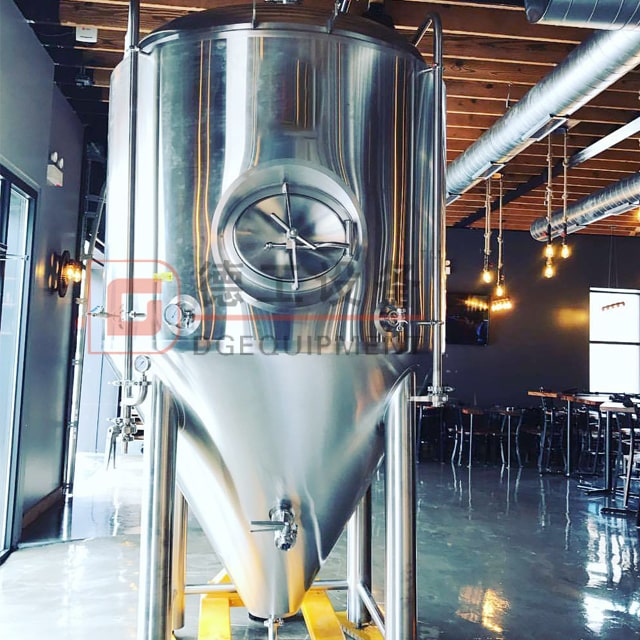

Details of fermentation tank

Inner cylinder thickness :SUS304 , 3 mm;

Outer cylinder SUS 304, thickness is 2mm;

The inside of the tank adopts Pickling passivation treatment;

Miller board  Dribbling is welded outside the inner cylinder & cone for cooling ;

Base cone angle :60 degree;

Using polyurethane insulation, the thickness is 80mm;

At the bottom there is an wort port ;

Rotation sampling and the beer opening at the lower part of the tank;

At the top section, there is a 360-degree exhaust and CIP port,

0.3MPa safety valve,

Side manhole

The CIP tube is equipped with a carbon dioxide release valve;

Four support legs ,the height is adjustable.

side manhole fermentation tank

sus304 fermentation tank details

If you are interested in beer equipment, please feel free to contact me.
