DGET-1200L
DGET
8438400000
System is mainly composed by mash/lauter tun, boiling pot, whirlpool tank, hops adding equipment etc. The main body of mash tun, all using international standards, high-quality 304 stainless steel.The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.
Function: Use for malt mashing, wort lautering, boiling, and whirlpool.
Component: Mash/Lauter tank, Kettle/Whirlpool tank, working platform, ABB motor, pump, manhole,plate heat exchanger and so on.
Heating method: Steam heating with generator/boiler, its advantages—Heat evenly and stable; it’s good for the beer taste, do not scorch the pot.Of course, if you need the electric heating or direct fire, we can also offer it for you.
Control method: PLC controller cabinet can be equipped in brewhouse.
Material: SUS304/316,red copper

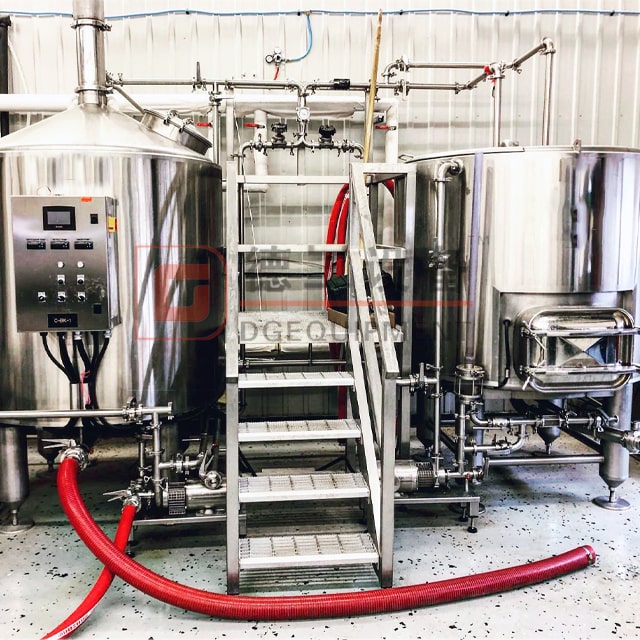

beer brewhouse is running
The fermentation tank can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve, CIP arm, sanitary sample calve, manway, etc, The design of fermenters is based on our vast beer knowledge and especially the micro beer fermentation tanks bottom and the fact that we combine fermentation and maturation in the same vessel is very important.
The main material of craft beer fermentation tank is stainless steel
An upper stainless steel dished head, the lower conical or dished bottom head to facilitated the discharge of yeast, 100% TIG welding, clean and polish;
inner wall thickness 3mm, heating preservation polyurethane foam, insulation thickness of 60-100mm, the thickness of the outer foreskin 2mm;
Cleaning the inner surfaces of the craft beer fermentation tank, polished to 0.4μm;
Configuration the appropriate standard models sanitary clamp type connector according to the specifications of the tank;
Configuration the vacuum valve / pressure relief, pressure gauge, thermometer, sampling valves, lifting ear, side or top of the manhole, a full range of cleaning equipment CIP nozzle 360° fo the beer fermentation tank;
Double glycol cooling takeover import and export, the refrigerant jacket is welded honeycomb Maitreya plate;
With liquor outlet valve shaft
Standard clamp-type hops added port;
Electronic thermometer sensor interfaces.
stainless steel fermentation tank details
System is mainly composed by mash/lauter tun, boiling pot, whirlpool tank, hops adding equipment etc. The main body of mash tun, all using international standards, high-quality 304 stainless steel.The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.
Function: Use for malt mashing, wort lautering, boiling, and whirlpool.
Component: Mash/Lauter tank, Kettle/Whirlpool tank, working platform, ABB motor, pump, manhole,plate heat exchanger and so on.
Heating method: Steam heating with generator/boiler, its advantages—Heat evenly and stable; it’s good for the beer taste, do not scorch the pot.Of course, if you need the electric heating or direct fire, we can also offer it for you.
Control method: PLC controller cabinet can be equipped in brewhouse.
Material: SUS304/316,red copper
beer brewhouse is running
The fermentation tank can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve, CIP arm, sanitary sample calve, manway, etc, The design of fermenters is based on our vast beer knowledge and especially the micro beer fermentation tanks bottom and the fact that we combine fermentation and maturation in the same vessel is very important.
The main material of craft beer fermentation tank is stainless steel
An upper stainless steel dished head, the lower conical or dished bottom head to facilitated the discharge of yeast, 100% TIG welding, clean and polish;
inner wall thickness 3mm, heating preservation polyurethane foam, insulation thickness of 60-100mm, the thickness of the outer foreskin 2mm;
Cleaning the inner surfaces of the craft beer fermentation tank, polished to 0.4μm;
Configuration the appropriate standard models sanitary clamp type connector according to the specifications of the tank;
Configuration the vacuum valve / pressure relief, pressure gauge, thermometer, sampling valves, lifting ear, side or top of the manhole, a full range of cleaning equipment CIP nozzle 360° fo the beer fermentation tank;
Double glycol cooling takeover import and export, the refrigerant jacket is welded honeycomb Maitreya plate;
With liquor outlet valve shaft
Standard clamp-type hops added port;
Electronic thermometer sensor interfaces.
stainless steel fermentation tank details
