DGET-1000L
DGET
8438400000
2 vessels (1000L M/L & B/W)+ Hot liquor tank
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
What do you need to start your own craft brewery?
Malt mill,
brewhouse,
suitable number of fermentation and maturation tanks,
water preparation and storage tanks (separate for hot and cold water),
chiller,
steam generator,
pump,
flexible piping: for pumping the product into the fermentors, for water pumping,
keg and bottle filling equipment,
packaging: bottles, cans, kegs,
labels for bottles and other packaging
| Brewhouse equipment features: |
brewery equipment side view
Mash & Lauter tun used for producing craft beer
Made of stainless steel 304.
Exterior walls completely welded with TIG welding, with 80mm of insulation in the bottom of the tank and in the walls.
Mirror polished interior.
Integrated jacketing system with laser at the bottom and on the walls of the tank.
Heating velocity: 1ºC/min.
Components:
Detachable rectangular side cover to remove the used grain.
Motor system (adjustable speed/inverter).
False bottom filter.
Sparging (lautering) in the upper part.
Boiling & whirlpool tank for craft beer
Vertical and cylindrical container made of stainless steel 304.
Exterior walls completely welded with TIG welding, with 80 mm of insulation in the inferior region and walls.
Mirror polished interior tank.
Jacketed at the bottom and on the walls, with heating capacity via electric heating/steam heating(Equipped with steam boilers: electric boilers, gas boilers and oil-fired boilers)/direct fire heating.
Components:
Tangential wort entry.

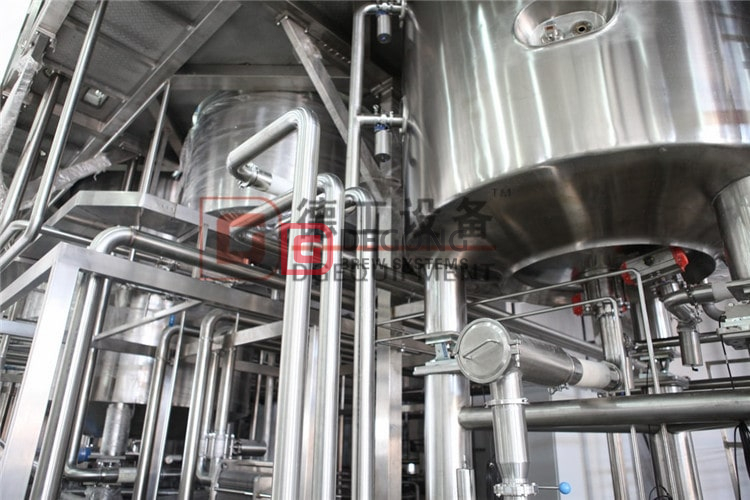

Brewhouse pipelines
Heat exchanger
Usage: wort fully cooled in one hour.
Temperature probe: PT1000.
Material: Stainless steel 316.
Wort cooling: from 100ºC to 18ºC.
Pump
Driven by a 0.75 kW motor.
Continuous speed control, with a frequency converter.
Pump and temperature controlled with PLC.
Material:stainless steel 304
Pump used for production and cleaning (CIP).
Brewhouse glowing appearance
According to client's needs, various combinations of brewhouse can be offered as followings:
2 Vessel Brewhouse
Mash/Launter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash (kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
4 Vessel Brewhouses
Mash (kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool Tun
| Fermentation equipment features: |
Brewery feremnters
Details:
tanks are available with torispherical and conical bottom
the conical bottom assures the easier removal of yeast from the tank
the tanks are available with side, top manholes depending on the size and your needs
the top manholes can handle high pressure, easily to handle
the side manholes are can be easily cleaned without any blind area
the material of the whole tank is stainless steel
Inner surface with a roughness less than 0.6µm to avoid the contamination spots that are hard to wash
2 cooling zone （Cylindrical and Conical part）
Vessel pressure:1.5bar/3bar
Top manhole fermentation tanks available
| DGET introduction: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

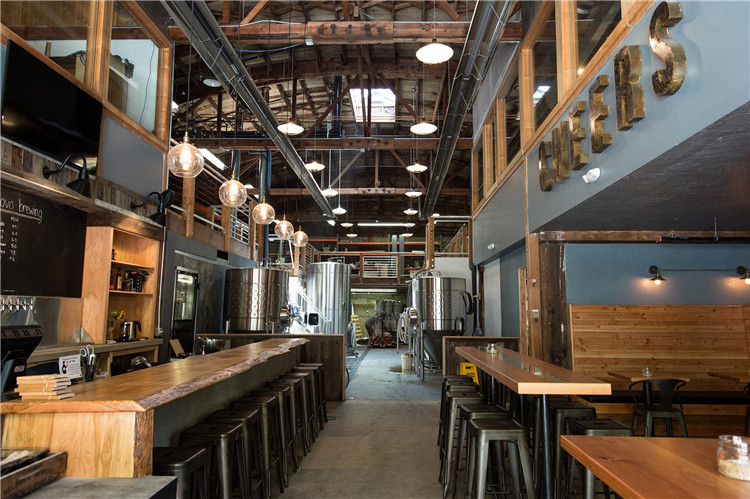

Taproom
After-sales service：
After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
Our certification
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Wooden box packaging,Load into container and fix
| Contact information: |
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
